All Stainless Steel Medicine Grade Wire Woven Rotary Vibrating Screen Separator
Product Introduction

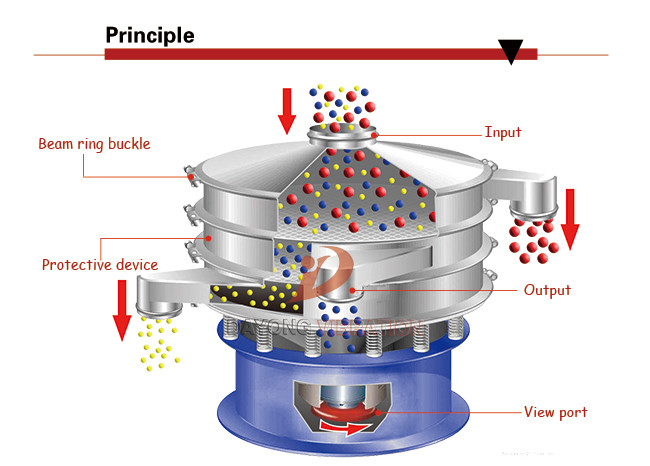

The power source of vibrating sieve is vibration motor. Breaking ball (unbalanced) is set on the top and bottom of vibration motor rotation axis. The breaking ball converts into three dimensional movements, namely horizontal, vertical and reclined, under the influence of rotation of vibrating motor. The rotation vibration sieve uses motor to transport three dimensional movement to the mesh layer. The phase angle of the breaking ball on top and bottom of vibrating motor are changed to modify the movement trajectory of materials.
Using Scope
1. Size classification: separation of particles into groups of comparable size from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning: cleaning of wastewater or remobving the solids from recirculating liquid.
Main Features
1. High screening precision, no mesh plugging.
2. The movement locus and vibration amplitude are both adjustable. Any granular, powdery and serous materials could be roughly screened, or just filtered according to the material applications.
3. The screening machine is 500-2000 mm in diameter, and the overall size is quite small. Wheels can be mounted on it for convenient moving.
4. The screen frame of the circular vibrating screen is specially designed. It takes only 3-5 minute for the screen changing.
5. The stainless steel wire woven net is easy to clean and operate, while the life span is quite long.
Technical Parameters
| Model | Power(kw) | Valid Diameter of screen(mm) | Volume(mm) | Screening efficient area (m2) | Layers |
DY-600-1S
DY-600-2S
DY-600-3S | 0.55kw | 550mm | 800*800*680
800*800*780
800*800*880 | 0.2375 | 1
2
3 |
DY-800-1S
DY-800-2S
DY-800-3S | 0.75 kw | 750mm | 900*900*780
900*900*930
900*900*1080 | 0.4416 | 1
2
3 |
DY-1000-1S
DY-1000-2S
DY-1000-3S | 1.5 kw | 950mm | 1160*1160*880
1160*1160*1030
1160*1160*1180 | 0.6789 | 1
2
3 |
DY-1200-1S
DY-1200-2S
DY-1200-3S | 1.75 kw | 1150 mm | 1360*1360*980
1360*1360*1160
1360*1360*1360 | 1.0382 | 1
2
3 |
DY-1500-1S
DY-1500-2S
DY-1500-3S | 2.2 kw | 1450mm | 1850*1850*1130
1850*1850*1330
1850*1850*1550 | 1.6052 | 1
2
3 |
DY-1800-1S
DY-1800-2S
DY-1800-3S | 3 kw | 1750mm | 2200*2200*1360
2200*2200*1460
2200*2200*1680 | 2.3523 | 1
2
3 |
Related Product
FAQ
Q: How many kinds of material are supported?
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.
Q: How long is the warranty?
The warranty is 12 month (except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.
