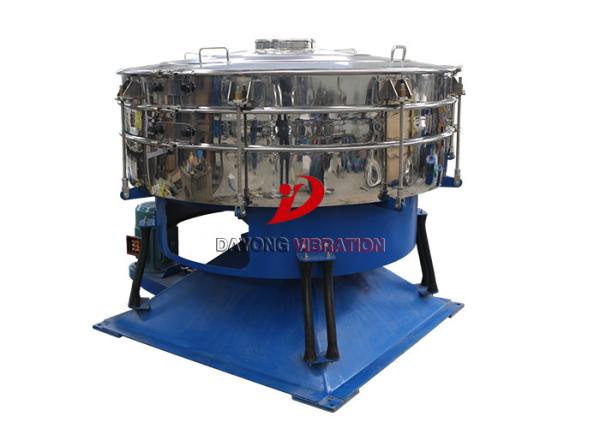

Vertical Plastic Particle Tumbler Screener In Chemical Industrial Fields
Working Principle
Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal,vertical and inclined movement, and then pass the movement to the sieving surface.Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
Main Features
1. Basic rotary motion is similar to artificial sieving, eccentricity ratio is adjustable from 25 to 40mm, low speed V-belt drive is adjustable from 120 to 360rpm.
2. 5 times output per unit area than normal vibrating scree.
3. Accurate to six grade screening.
4. Screening efficiency ≥95%.
5. Use silicone balls, rubber balls, ultrasonic and drum brush for clearing mesh cloth.
6. Mesh cloth not blocked, closed dustproof, safe operation.
7. Accelerated speed is lower than the average 4.5 times vibrating screen.
8. Longer life time of small parts.
9. Noise <75 dB
10. Optimization of gravity balance, foundation dynamic load is low.
Using Scope
1. Food industry: flour, milk powder, starch, fish meal, rice flour,quinoa, vitamin, spices, dextrin, drinks, juice, sugar, soy sauce, pineapple juice, yeast, the mother liquor, etc.
2. Chemical industry: paint, tree cosmetics, PVC tree of cosmetics, citric acid, PE powder, washing powder, etc.
3. Pharmaceutical industry: Pharmaceutical intermediates, medical auxiliary materials,this solution, west powder, and west solution, etc.
4. Ceramic abrasive metallurgy industry: aluminum silver pulp, mud, kaolin, quartz sand, alumina, artificial black aluminum, graphite, silicon, etc.
Technical Parameters
| Model | Diameter (mm) | Screening surface (m2) | Screening surface angle (degree) | Layer | Power (kw) |
| DYB-600 | 600 | 0.29 | 0.10 | 1 - 5 | 0.25 |
| DYB-1000 | 1000 | 0.71 | 0.10 | 1 - 5 | 1.5 |
| DYB-1200 | 1200 | 1.11 | 0.10 | 1 - 5 | 2.2 |
| DYB-1600 | 1600 | 1.83 | 0.10 | 1 - 5 | 4 |
| DYB-2000 | 2000 | 2.62 | 0.10 | 1 - 5 | 5.5 |
| DYB-2400 | 2400 | 3.63 | 0.10 | 1 - 4 | 5.5 |
| DYB-2600 | 2600 | 5.31 | 0.10 | 1 - 4 | 5.5 |
Certificates:
1. ISO International Standards ensure that products and services are safe, reliable and of good quality.
2. CE certification is designed to protect EU consumers by regulating products to reduce possible dangers to people and the environment.
FAQ
1. MOQ require?
Our MOQ is 1 set.(If you need the spare parts,it is also ok.
2. Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A
3. How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing
4. Packing and Delivery
Standard export wooden case to protect the machine from demage.
If we have no stock, we will delivery within 7-20 working days.
